Product Introduction

1. Product type

Seamless zirconium tube: heat exchanger tube, condenser tube, high-temperature and high-pressure pipeline

Welding zirconium tube: large-diameter process pipeline, equipment connecting tube

Applicable standards: ASTM B523, ASME SB523, GB/T 26284

II. Specification Range

Outer diameter: Φ6mm～Φ219mm

Wall thickness: 0.5mm to 10mm

Length: Customizable, cut-to-size upon request

Surface: pickling, polishing, and buffing

Capable of conducting water pressure, air pressure, UT/PT non-destructive testing

III. Main Applications

Pipelines for highly corrosive media in chemical industry: hydrochloric acid, acetic acid, urea, PTA, chlor-alkali plants

Seawater desalination, marine engineering, and corrosion-resistant heat exchanger tubes for oil and gas extraction

High-purity zirconium tubes for nuclear power, vacuum furnaces, and semiconductor equipment

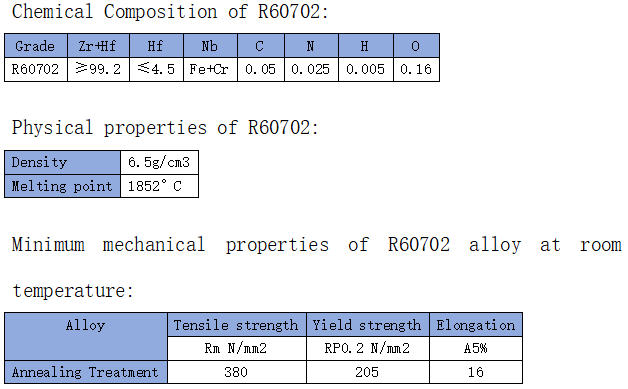

Characteristics of R60702:

Zirconium is a highly corrosion-resistant metal, suitable for chemical corrosion-resistant equipment. Its acid resistance is superior to that of titanium and various steels, and is close to that of tantalum. Zirconium is also quite stable in alkaline solutions.

Zirconium is fully resistant to the erosion of alkaline solutions and molten alkalis. Its corrosion resistance in sodium hydroxide media is comparable to that of nickel. Due to its excellent corrosion resistance, zirconium is in many cases much better than titanium and precious metals. Furthermore, zirconium also exhibits good mechanical properties and high temperature resistance. Therefore, zirconium is mainly used in the manufacture of heat exchangers, vessel linings, valves, pump casings, blades, agitators, conduits, etc. in chemical equipment, especially in equipment with high corrosion resistance requirements. Many chemical equipment for producing fertilizers, resins, plastics, and acids utilize zirconium.
